GM-602B Hydrogen Sulfide Gas Sensor

The MEMS hydrogen sulfide gas sensor is composed of a Si-based micro-hot plate made of MEMS technology and a metal-oxide-semiconductor material with low conductivity in clean air. When the detected gas is present in the ambient air, the conductivity of the sensor changes. The higher the concentration of this gas, the higher the conductivity of the sensor. The change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.

立即咨询

describe

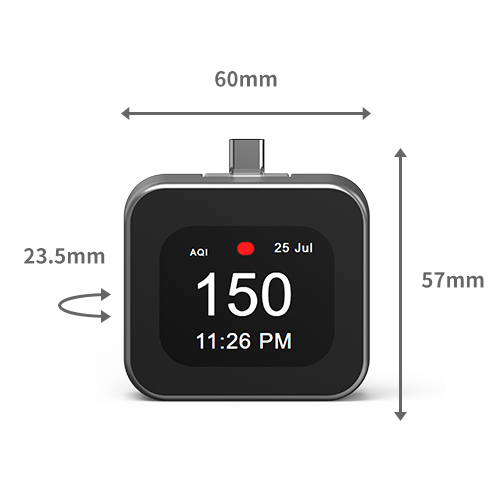

Product Size

Gallery display

Online message

Sensor Features
This product adopts MEMS technology, with solid structure and high sensitivity to hydrogen sulfide; it has the advantages of small size, low power consumption, high sensitivity, fast response and recovery, simple driving circuit, good stability and long life.

main application
Portable and stationary hydrogen sulfide monitors; hydrogen sulfide detectors.

Technical indicators

Product number			GM-602B
product type			MEMS hydrogen sulfide gas sensor
standard package			Ceramic package
detect gas			Hydrogen sulfide, benzene, etc.
Detection concentration			0.5ppm～50ppm(H₂S)
Standard Circuit Conditions	loop voltage	V_C	≤24V DC
	heating voltage	V_H	1.9V±0.1V AC or DC
	Load Resistance	R_L	adjustable
Gas sensor characteristics under standard test conditions	heating resistance	R_H	80Ω±20Ω（room temperature）
	Heating power consumption	P_H	≤40mW
	sensitive body resistance	R_S	1KΩ～30KΩ(in 50ppmH2S
	Sensitivity	S	R₀(in air)/Rs(in 50ppmH₂S)≥3
	Concentration slope	α	≤0.6(R_200ppm/R_50ppmH2S)
Standard Test Conditions	temperature humidity		20℃±2℃；55%RH±5%RH
Standard Test Conditions	Standard Test Circuit		V_C:5.0V±0.1V； V_H:1.9V±0.1V

Note: Product parameters are subject to change without prior notice
